Transistor 2SA968

Transistor 2SA968

Characteristics of the 2SA968 bipolar transistor
Type - p-n-p
Collector-Emitter Voltage: -160 V
Collector-Base Voltage: -160 V
Emitter-Base Voltage: -5 V
Collector Current: -1.5 A
Collector Dissipation - 25 W
DC Current Gain (hfe) - 70 to 240
Transition Frequency - 100 MHz
Operating and Storage Junction Temperature Range -55 to +150 °C

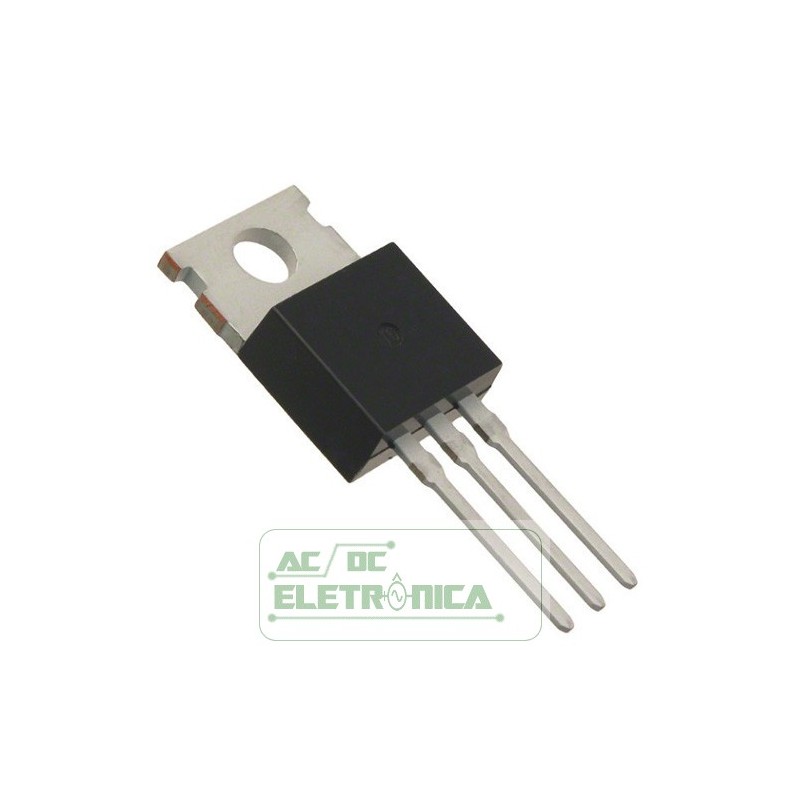

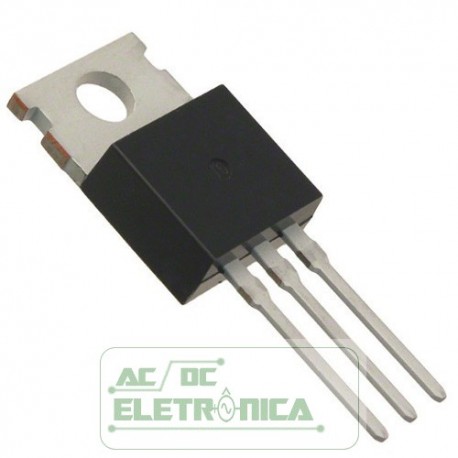

Package - TO-220
