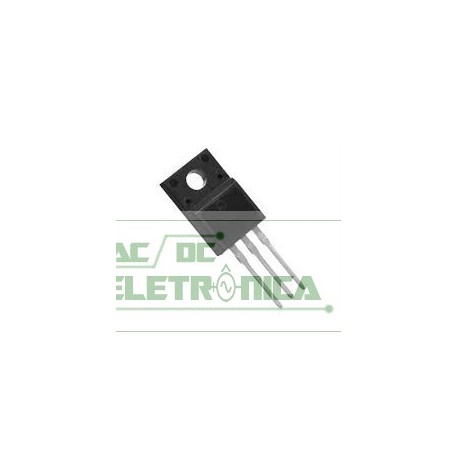

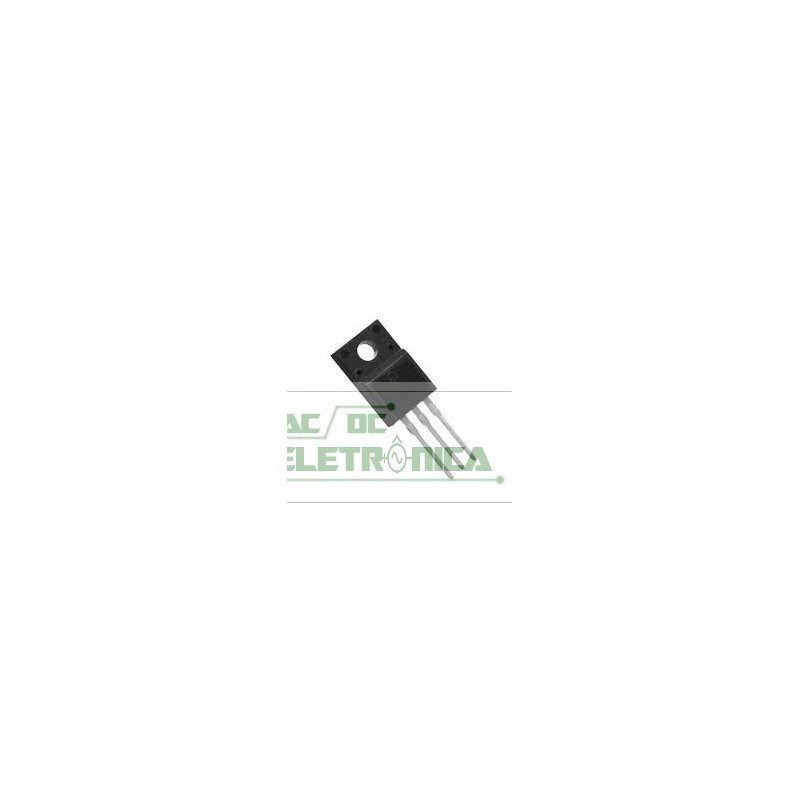

Transistor 2SD1650

Transistor 2SD1650

NPN - Saida horizontal 1500/600v 3,5A 50w com diodo to218

VCESM Collector-emitter voltage peak value VBE = 0V - 1500 V
VCEO Collector-emitter voltage (open base) - 600 V
IC Collector current (DC) - 3.5 A
ICM Collector current peak value - 7.0 A
Ptot Total power dissipation Tmb 25 - 50 W
VCEsat Collector-emitter saturation voltage IC = 2.0A; IB = 0.4A - 1.5 V
Icsat Collector saturation current f = 16KHz - A
VF Diode forward voltage IF = 2.0A 2.0 V
tf Fall time IC=2A,IB1=-IB2=0.4A,VCC=140V 1.0 s
