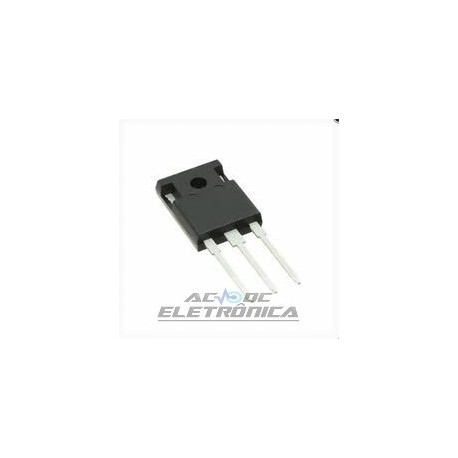

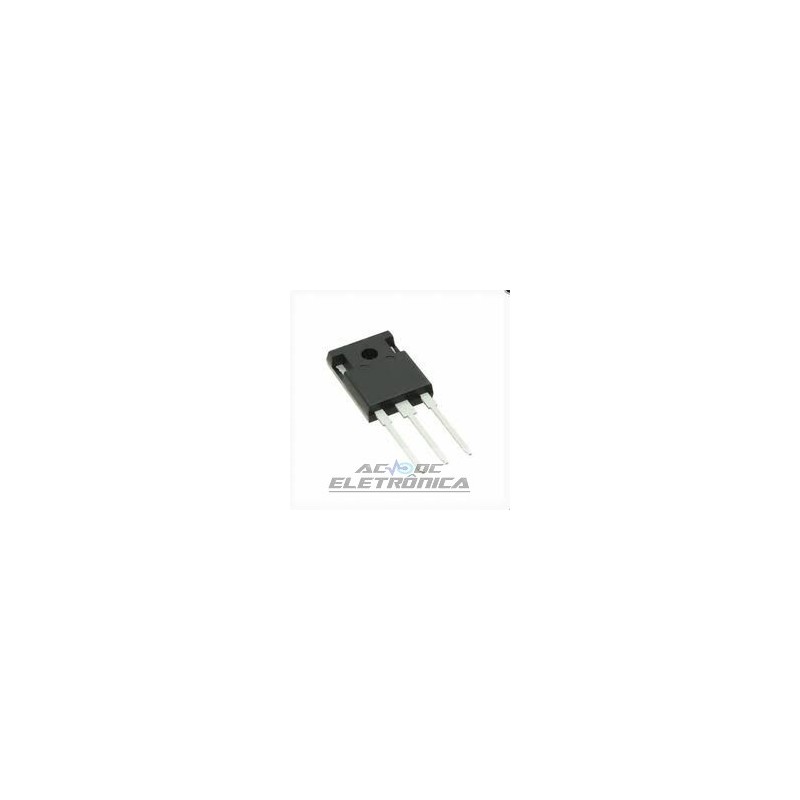

Transistor G15T120 - IRG15T120

Transistor G15T120 - IRG15T120

IGBT 1200v 15A 110w

IGBT,1200V,15A,TO247
Transistor Type: IGBT
DC Collector Current: 15A
Collector Emitter Voltage Vces: 2.2V
Power Dissipation Pd: 110W
Collector Emitter Voltage V(br)ceo: 1.2kV
Operating Temperature Min: -40°C
Operating Temperature Max: 150°C
Transistor Case Style: TO-247
No. of Pins: 3
MSL: -
SVHC: No SVHC (19-Dec-2012)
Operating Temperature Range: -40°C to +150°C
Power Dissipation Max: 110W
