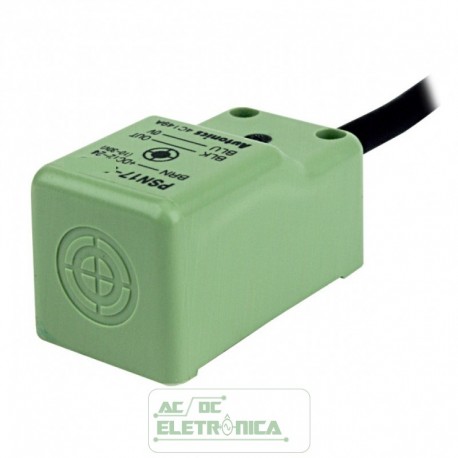

Sensor indutivo retangular 8mm PSN17-8DN2 - Autonics

Sensor de proximidade capacitivo 24Vcc PSN17-8DN2 Autonics

NPN NF
Wire type and power DC 3-wire type 12-24VDC
Sensing side size Frame size 17mm
Sensing distance 8mm
Standard sensing target 25×25×1mm(iron)
Response frequency 200Hz
Current specification Current consumption: Max. 10mA
Control output NPN Normally Closed
Sensing type Standard type(front sensing type)
Material Heat-resistant ABS
Protection structure IP67
Environment_Ambient temperature -25 to 70?, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Weight ˜ 62g (˜ 83g)
