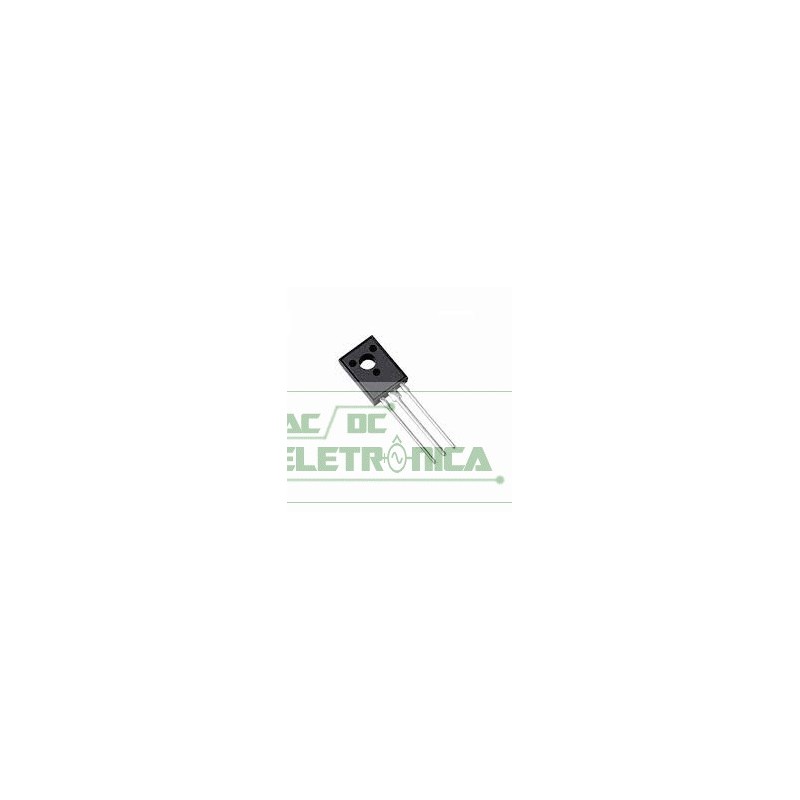

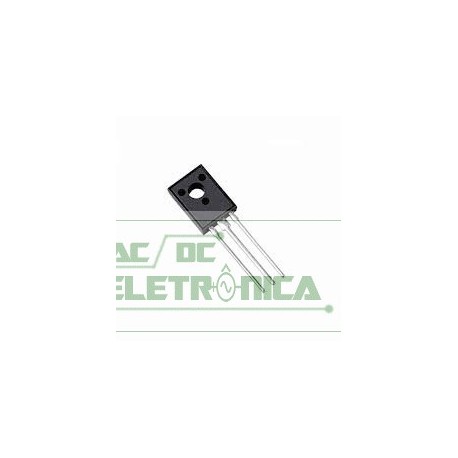

Transistor 2SC3420

Transistor 2SC3420

NPN - Strobe Flash Applications
Audio Power Amplifier Applications

Collector-base voltage VCBO 50 V
VCES 40
Collector-emitter voltage
VCEO 20
V
Emitter-base voltage VEBO 8 V
DC IC 5
Collector current Pulse
(Note 1)
ICP 8
A
Base current IB 1 A
Ta = 25°C 1.5 Collector power
dissipation Tc = 25°C
PC
10
W
Junction temperature Tj 150 °C
Storage temperature range Tstg -55 to 150 °C
