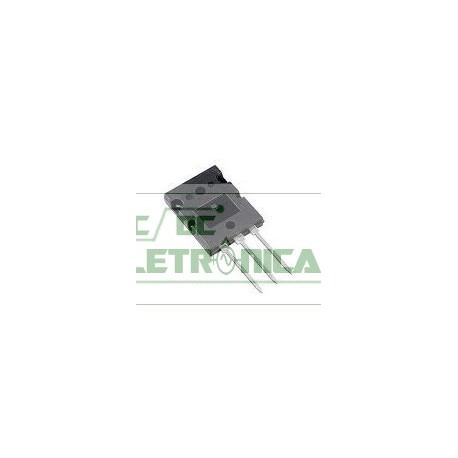

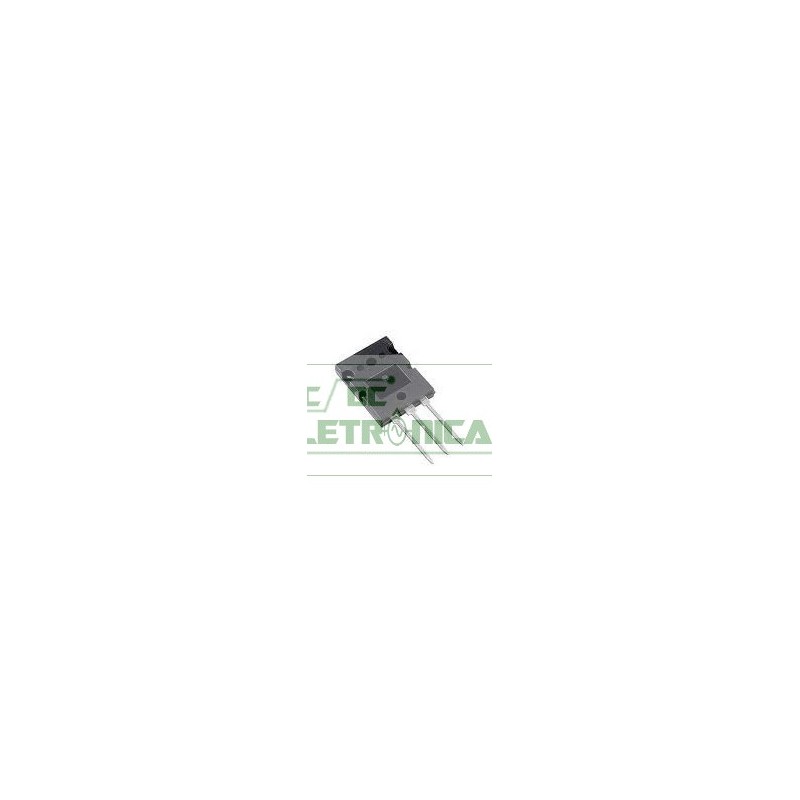

Transistor 2SC3998

Transistor 2SC3998

NPN Triple Diffused - CRT Hi,def 1500/800v 25A 250w
Ultrahigh-Definition CRT Display
Horizontal Deflection Output Applications

P l arameter S s ymbo C s ondition R t ating Uni
C V ollector-to-Base Voltage CBO 1 V 500
C V ollector-to-Emitter Voltage CEO 8 V 00
E V mitter-to-Base Voltage EBO 6 V
C I ollector Current C 2 A 5
C I ollector Current (Pulse) CP 5 A 0
C P ollector Dissipation C 2 W 50
J j unction Temperature T 150
S g torage Temperature Tst –55 to +150
