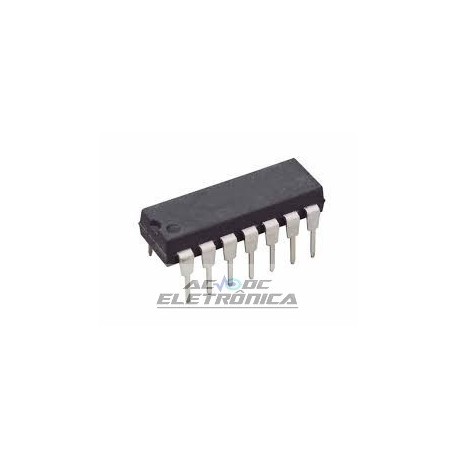

Circuito integrado SN75182 - DS8820AN

Circuito integrado SN75182 = DS8820AN

DUAL DIFFERENTIAL LINE RECEIVERS
Single 5-V Supply
Differential Line Operation
Dual Channels
TTL Compatibility
±15-V Common-Mode Input Voltage Range
±15-V Differential Input Voltage Range
Individual Channel Strobes
Built-In Optional Line-Termination Resistor
Individual Frequency Response Controls
Designed for Use With Dual Differential
Drivers SN55183 and SN75183
Designed to Be Interchangeable With
National Semiconductor DS7820A and
DS8820A
description
The SN55182 and SN75182 dual differential line
receivers are designed to sense small differential
signals in the presence of large common-mode
noise. These devices give TTL-compatible output
signals as a function of the polarity of the
differential input voltage. The frequency response
of each channel can be easily controlled by a
single external capacitor to provide immunity to
differential noise spikes. The output goes to a high
level when the inputs are open circuited. A strobe
input (STRB) is provided that, when in the low
level, disables the receiver and forces the output
to a high level.
The receiver is of monolithic single-chip construction, and both halves of the dual circuits use common
power-supply and ground terminals.
