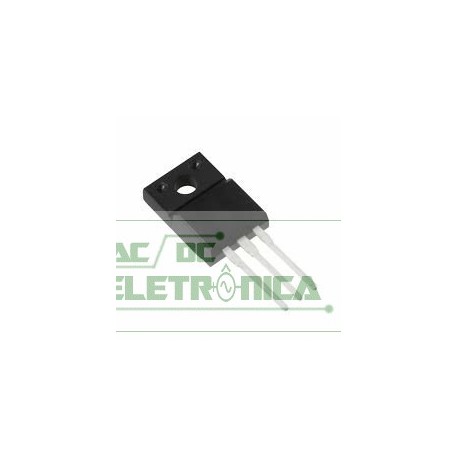

Transistor 2SB1344

Transistor 2SB1344

Darlington Silicon PNP 120V 8A TO220
Absolute maximum ratings(Ta=25)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage Open emitter -100 V
VCEO Collector -emitter voltage Open base -100 V
VEBO Emitter-base voltage Open collector -7 V
IC Collector current -8 A
ICM Collector current-peak -10 A
Ta=25 2
PC Collector power dissipation
TC=25 30
W
Tj Junction temperature 150
Tstg Storage temperature -55~150
