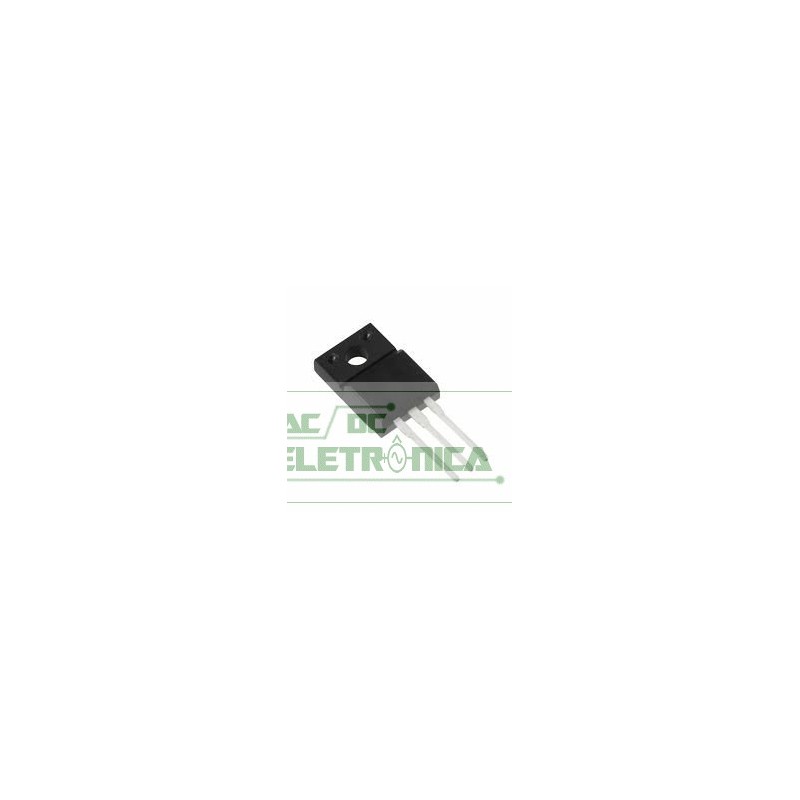

Transistor 2SB1568

Transistor 2SB1568

Power Transistor (-80V, -4A)
Absolute maximum ratings (Ta=25)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage Open emitter -80 V
VCEO Collector-emitter voltage Open base -80 V
VEBO Emitter-base voltage Open collector -7 V
IC Collector current -4 A
ICM Collector current-peak -6 A
TC=25 30
PC Collector dissipation
2
W
Tj Junction temperature 150
Tstg Storage temperature -55~150
