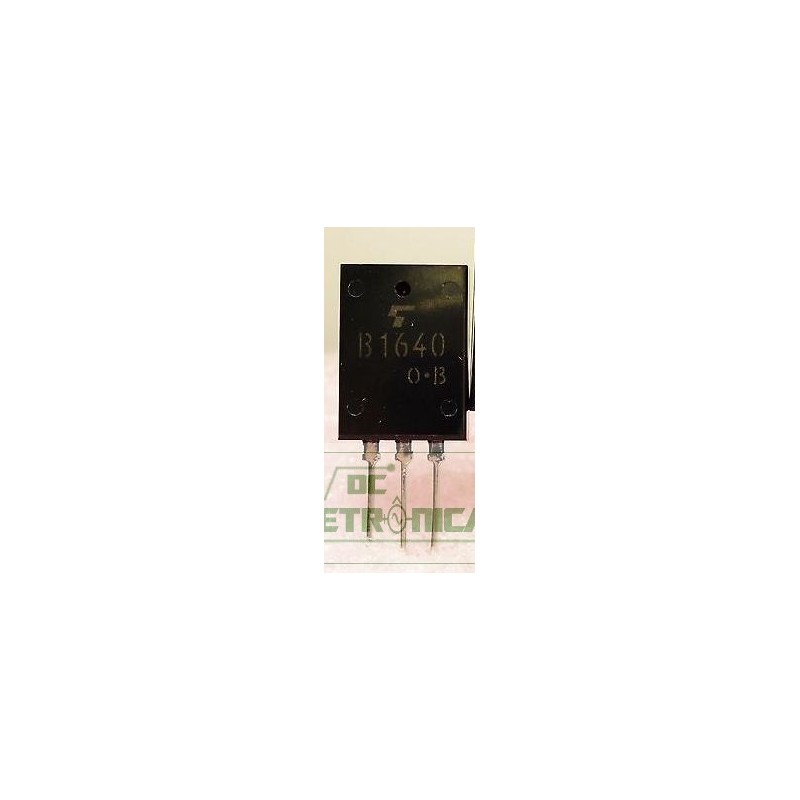

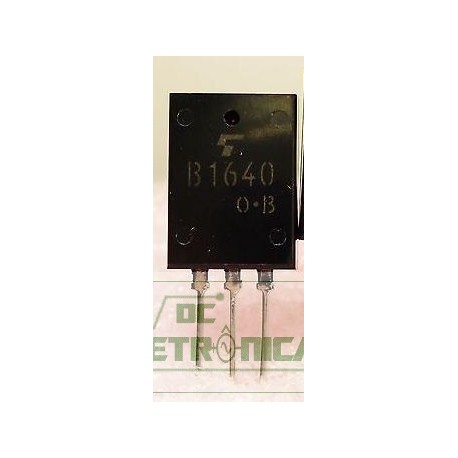

Transistor 2SB1640

Transistor 2SB1640

PNP Power Transistors 3A 60v
Absolute maximum ratings(Ta=25)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage Open emitter -60 V
VCEO Collector-emitter voltage Open base -60 V
VEBO Emitter-base voltage Open collector -7 V
IC Collector current -3 A
IB Base current -0.5 A
PC Collector power dissipation TC=25 1.8 W
Tj Junction temperature 150
Tstg Storage temperature -55~150
