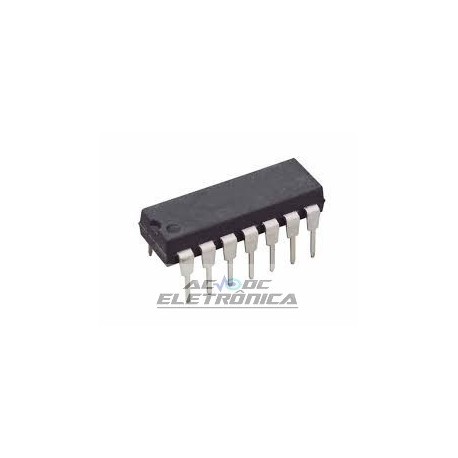

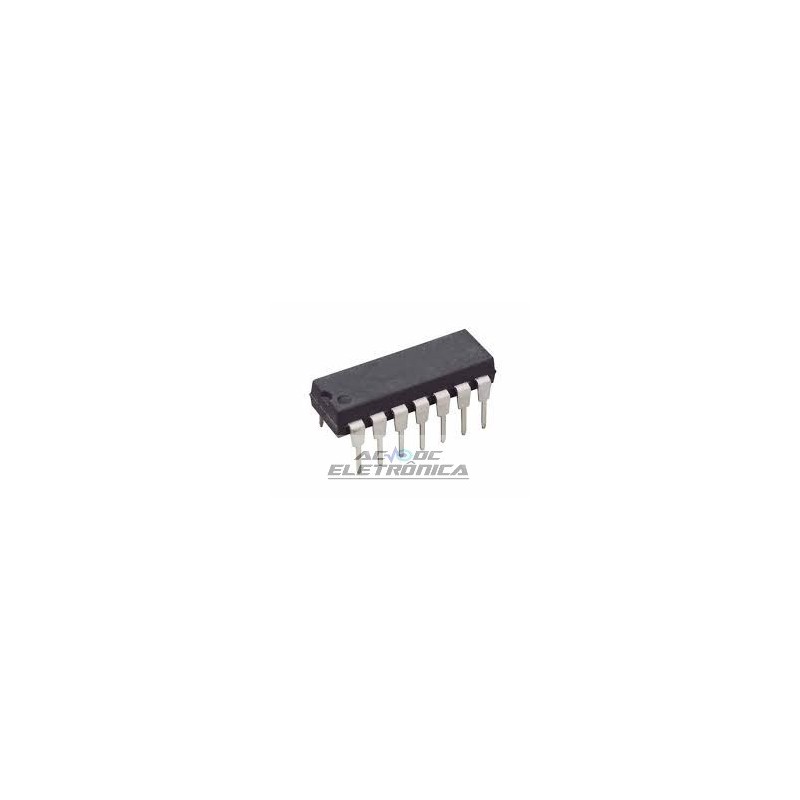

Circuito integrado TL074

Circuito integrado TL074

LOW NOISE J-FET QUAD OPERATIONAL AMPLIFIERS
WIDE COMMON-MODE (UP TO VCC+) AND
DIFFERENTIAL VOLTAGE RANGE
¦ LOW INPUT BIAS AND OFFSET CURRENT
¦ LOW NOISE en = 15nV/vHz (typ)
¦ OUTPUT SHORT-CIRCUIT PROTECTION
¦ HIGH INPUT IMPEDANCE J–FET INPUT
STAGE
¦ LOW HARMONIC DISTORTION : 0.01% (typ)
¦ INTERNAL FREQUENCY COMPENSATION
¦ LATCH UP FREE OPERATION
¦ HIGH SLEW RATE : 13V/µs (typ)
DESCRIPTION
The TL074, TL074A and TL074B are high speed
J–FET input quad operational amplifiers incorporating
well matched, high voltage J–FET and bipolar
transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias
and offset currents, and low offset voltage temperature
coefficient
